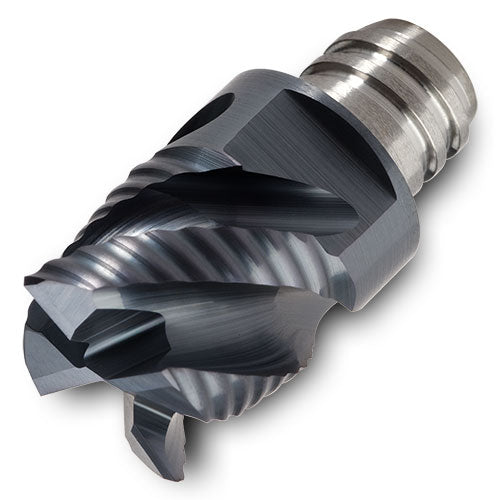

48C-1086TURN01 IN2005
Item #: IC042928065
Brand: Ingersoll
Model #: 2928065
| Product Specifications | |
|---|---|
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Grade | IN2005 |
| Cutting Diameter (DC) | 1″ |
| Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Non Ferrous Metals | Hi Temp Alloys | |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Flute Count (NOF) | 6 |
| Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.866″ |
| Ramping Angle Maximum (RMPX) | 3 Degrees |
| Connection Diameter Machine Side (DCONMS) | 0.941″ |
| Body Material | Steel |
| Functional Length (LF) | 1.457″ |
| Corner Radius (RE) / Chamfer Width (CHW) | 0.020 Chamfer |
| Flute Helix Angle (FHA) | 45 Degrees |
