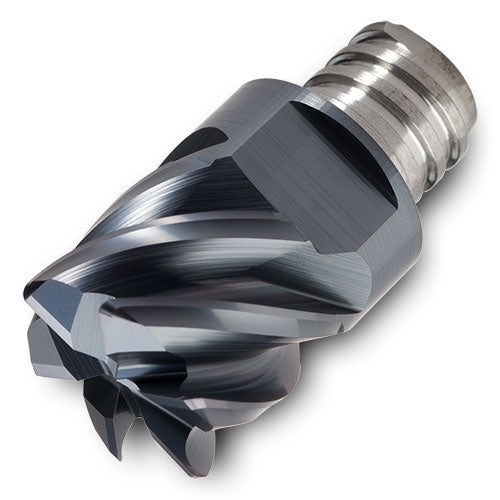

48D-3120TQRB01 IN2005
Item #: IC042928031
Brand: Ingersoll
Model #: 2928031
| Product Specifications | |
|---|---|
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | |
| Flute Helix Angle (FHA) | 30 Degrees |
| Cutting Diameter (DC) | 0.312″ |
| Measurement Type | Inch |
| Flute Count (NOF) | 6 |
| Ramping Angle Maximum (RMPX) | 3 Degrees |
| Depth of Cut Maximum (APMX) | 0.2″ |
| Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 0.3″ |
| Corner Radius (RE) / Chamfer Width (CHW) | 0.015 R |
| Functional Length (LF) | 0.394″ |
