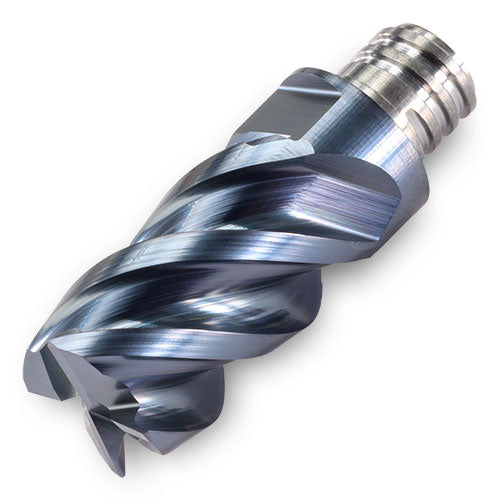

47D-6293TRRQ01 IN2005
Item #: IC042928017
Brand: Ingersoll
Model #: 2928017
| Product Specifications | |
|---|---|
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | |
| Flute Helix Angle (FHA) | 46.5 Degrees |
| Cutting Diameter (DC) | 5/8″ |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Flute Count (NOF) | 4 |
| Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.938″ |
| Ramping Angle Maximum (RMPX) | 90 Degrees |
| Connection Diameter Machine Side (DCONMS) | 0.602″ |
| Body Material | Steel |
| Functional Length (LF) | 1.319″ |
| Corner Radius (RE) / Chamfer Width (CHW) | 0.015 R |
