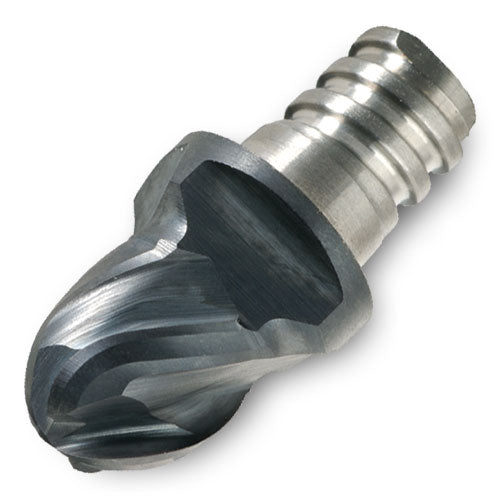

47B05007TQRB15 IN2005
Item #: IC042927854
Brand: Ingersoll
Model #: 2927854
| Product Specifications | |
|---|---|
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Functional Length (LF) | 0.591″ |
| Cutting Diameter (DC) | 0.197″ |
| Flute Helix Angle (FHA) | 38 Degrees |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Non Ferrous Metals | Hi Temp Alloys | |
| Grade | IN2005 |
| Flute Count (NOF) | 4 |
| Coating | TiAlN |
| Corner Radius (RE) | 0.098″ |
| Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.276″ |
| Usable Length (LU) | 0.35″ |
| Connection Diameter Machine Side (DCONMS) | 0.299″ |
| Body Material | Steel |
