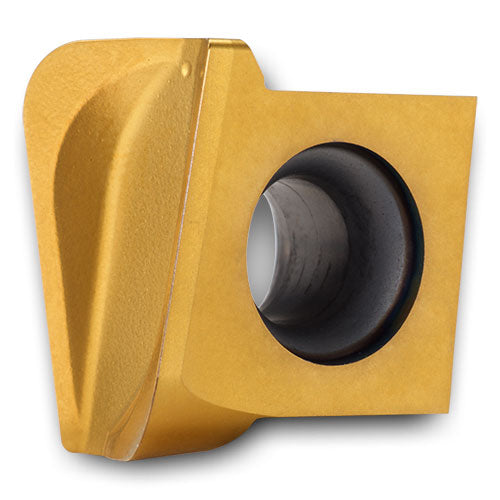

IPM426R004-MM IN2505
Item #: IC042923326
Brand: Ingersoll
Model #: 2923326
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Non Ferrous Metals | Hi Temp Alloys | |
| Coating | TiAlN+TiN |
| Cutting Edge Length (L) | 0.626″ |
| Grade | IN2505 |
| Insert Length (INSL) | 0.626″ |
| Insert Style | IPM426R004-MM |
| Corner Radius (RE) | 1/8″ |
| Cutting Direction (HAND) | Right Hand |
| Insert Width (W1) | 0.585″ |
| Number of Cutting Edges | 2 |
| Insert Thickness (S) | 3/8″ |
| Measurement Type | Inch |
| Wiper Edge Length (BS) | 1.248″ |
| Body Material | Steel |
