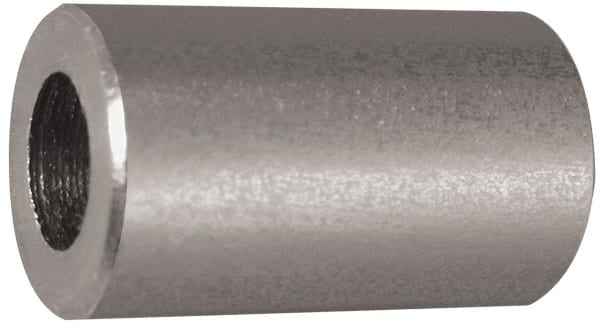

Electro Hardware - M4 Screw 25mm OAL 4.2 to 4.8mm ID x 6mm OD Round Stainless Steel Circuit Board Spacers
Item #: 77128528
Brand: Electro Hardware
Model #: MS1049M07F16F
Features and Benefits
Female unthreaded circuit board spacers do not have threads and resemble a plain, cylindrical tube. They are the most common type of spacer.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Female Unthreaded |
| Material | Stainless Steel |
| System of Measurement | Metric |
| Body Shape | Round |
| Screw Size | M4 |
| Outside Diameter (mm) | 6.0 |
| Overall Length (mm) | 25.0 |
| Inside Diameter (mm) | 4.2 to 4.8 |
| Finish/Coating | Uncoated |
| Material Grade | Grade 303 |
| Inside Diameter Tolerance (mm) | 0.000 to 0.270 |
| Length Tolerance (mm) | -0.130 to 0.130 |
| Fastener Standard | QQ-S-763 |
