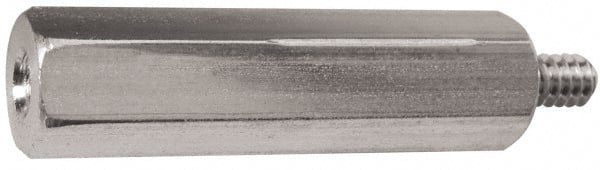

Electro Hardware - #4-40, 0.624" OAL, 1/4" Across Flats, Stainless Steel Male/Female Hex Circuit Board Standoff
Item #: 95765418
Brand: Electro Hardware
Model #: 1433-M09F16-440
Features and Benefits
Circuit board standoffs with male/female threads have one externally threaded end and one internally threaded end. The female end accepts male fasteners or other standoffs.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Thread Type | Male/Female |
| Material | Stainless Steel |
| System of Measurement | Inch |
| Body Shape | Hex |
| Overall Length (Decimal Inch) | 0.6240 |
| Thread Style | Fully Threaded |
| Thread Size | #4-40 |
| Width Across Flats (Inch) | 1/4 |
| Finish/Coating | Uncoated |
| Body Length (Decimal Inch) | 0.4370 |
| Thread Length (Inch) | 0.1870 |
| Thread Depth (Inch) | 1/4 |
| Material Grade | Grade 303 |
