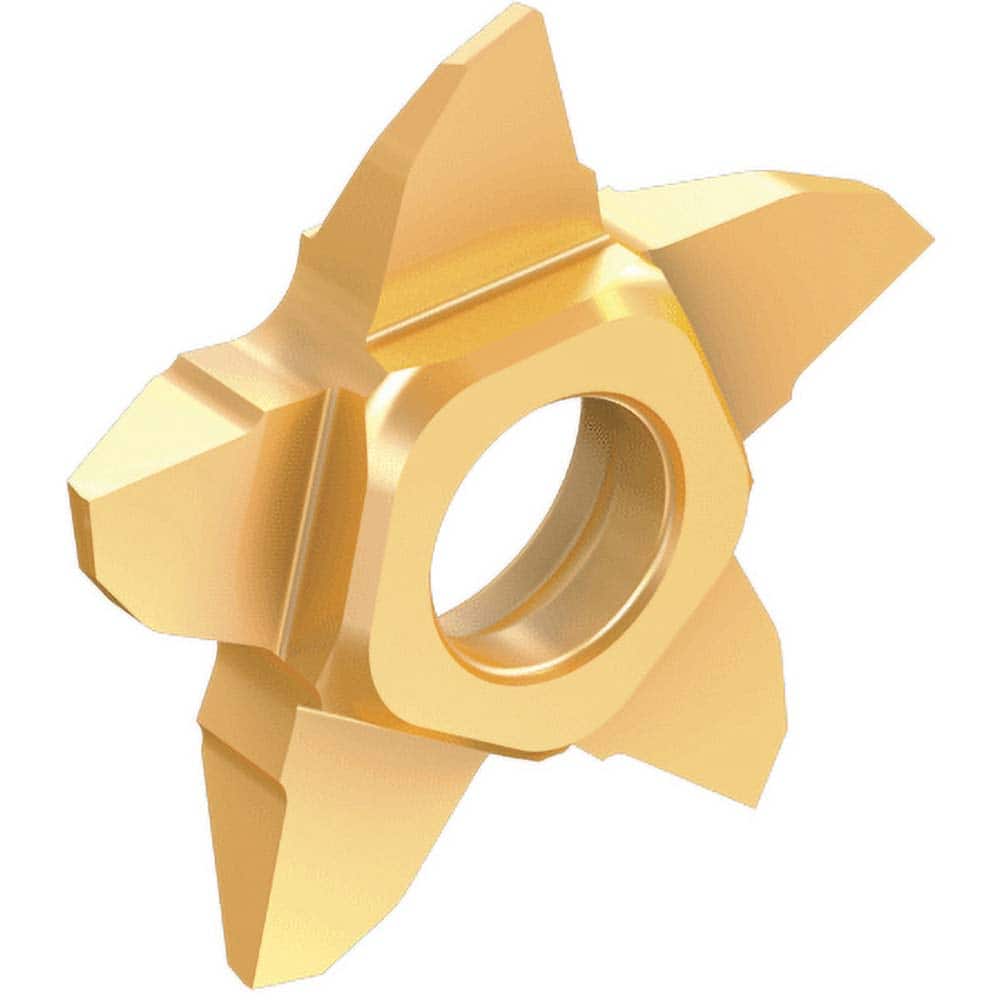

Iscar - Grooving Inserts Insert Style: PENTA Insert Size: 17EL00-07K0
Item #: 16420747
Brand: Iscar
Model #: 3336635
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Product Specifications
Grooving Inserts; Insert Style: PENTA ; Insert Size: 17EL00-07K0 ; Material: Carbide ; Cutting Width (mm): 0.700 ; Cutting Width (Decimal Inch): 0.0275 ; Maximum Depth of Cut (mm): 2.50
| Insert Style | PENTA |
| Insert Size | 17EL00-07K0 |
| Material | Carbide |
| Cutting Width (mm) | 0.700 |
| Cutting Width (Decimal Inch) | 0.0275 |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Manufacturer's Grade | IC1008 |
| Coating | TiAlN/TiN |
| Cutting Direction | Neutral |
| Cutting Height (mm) | 2.40 |
| Corner Radius (mm) | 0.00 |
| Coating Process | PVD |
| Material | Carbide |
| Cutting Direction | Neutral |
| Maximum Depth of Cut (mm) | 2.50 |
| Insert Style | PENTA |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Material | Carbide |
| Manufacturer's Grade | IC1008 |
| Insert Style | PENTA |
| Insert Size | 17EL00-07K0 |
| Insert Holding Method | Screw |
| Cutting Direction | Neutral |
| Coating Process | PVD |
| Coating | TiAlN/TiN |
| Corner Radius (Decimal Inch) | 0.0000 |
| Single/DoubleEnd | Other |
