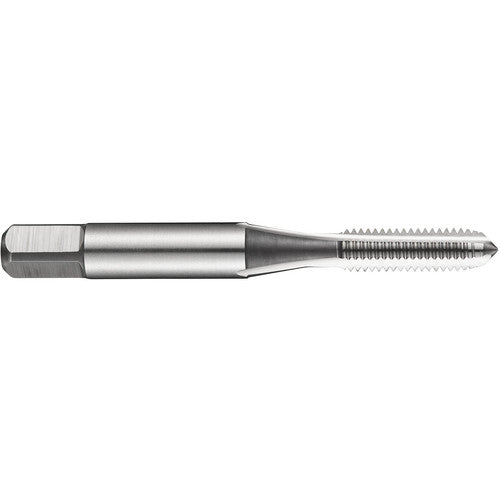

Dormer HSS Bright G(BSP) Hand Tap Straight Flute DIN 5157 Series E119 E-code # E1192NO3
Item #: HP430084694
Brand: Dormer
Model #: 5975927
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 2″ |
| Coating | Bright |
| Threads per Inch (TPI) | 11 |
| Tapping Prehole Diameter (Pre-hole) | 57 mm |
| Thread Standard | G(BSP) |
| Flute Length | 40 mm |
| Overall Length (OAL) | 160 mm |
| Flute Type | Straight |
| Thread Cutting Part Length (THL) | 40 mm |
| Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 45 mm |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 6 |
| Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 0 Degrees |
| Measurement Type | Fractional |
| Cutting Edge Material | HSS |
| Series/List # | E119 |
| Tool Type | Hand Tap |
| Thread Size | 2″ - 11 |
