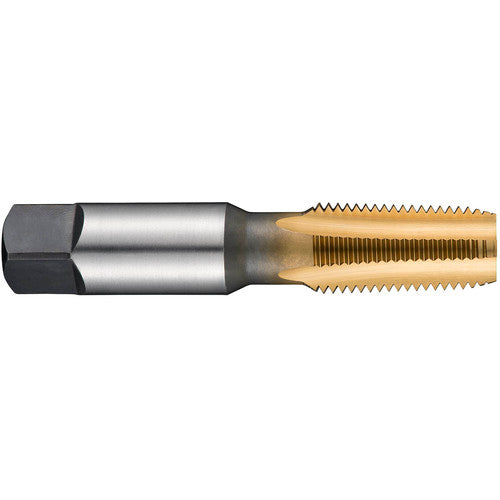

1/4-18 NPT HSS Machine Tap Straight Flute-TiN ANSI B94.9 E-code # E7211/4
Item #: HP420161470
Brand: Dormer
Model #: 5977598
| Product Specifications | |
|---|---|
| Tool Type | National Pipe Taper Taps |
| Connection Diameter Machine Side (DCONMS) | 14.3 mm |
| Thread Diameter Size (TDZ) | 1/4″ |
| Flute Type | Straight |
| Threads per Inch (TPI) | 18 |
| Coating | TiN |
| Thread Standard | NPT |
| Cutting Edge Material | HSS |
| Flute Count (NOF) | 4 |
| Standard | ANSI B94.9 |
| Overall Length (OAL) | 75 mm |
| Series/List # | E721 |
| Thread Cutting Part Length (THL) | 27 mm |
| Thread Size | 1/4″ - 18 |
