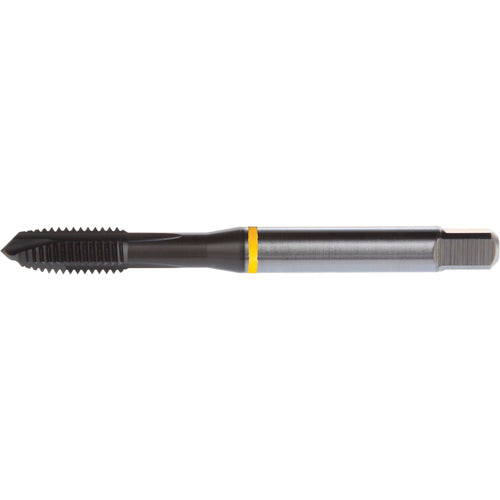

M24x3.0 4 Flute 6H HSS-E PM DIN ANSI Machine Tap - Yellow Shark for Low Alloy Steels - Plug Style E-code # E625M24
Item #: HP407350502
Brand: Dormer
Model #: 7350502
| Product Specifications | |
|---|---|
| Thread Standard | M |
| Applicable Material | Steel |
| Thread Size | M24 × 3 |
| Connection Diameter Machine Side (DCONMS) | 0.76″ |
| Thread Diameter Size (TDZ) | M24 |
| Thread Cutting Part Length (THL) | 38 mm |
| Thread Pitch (TP) | 3 mm |
| Flute Helix Angle (FHA) | 0 Degrees |
| Thread Tolerance Class (TCTR) | 6H |
| Tapping Prehole Diameter (Pre-hole) | 53/64″ |
| Overall Length (OAL) | 160 mm |
| Flute Length | 38 mm |
| Chamfer | 3.5P-5P |
| End Shape | Spiral Point |
| Coating | TiAlN/Top |
| Style | Plug |
| Flute Count (NOF) | 4 |
| Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | HSS-E PM |
| Coolant Supply Property (CSP) | External |
| Standard | DIN ANSI |
| Length Group | 2.5xD |
| Tool Type | Machine Tap |
| Measurement Type | Metric |
| Special Feature | Yellow Shark |
| Series/List # | E625 |
