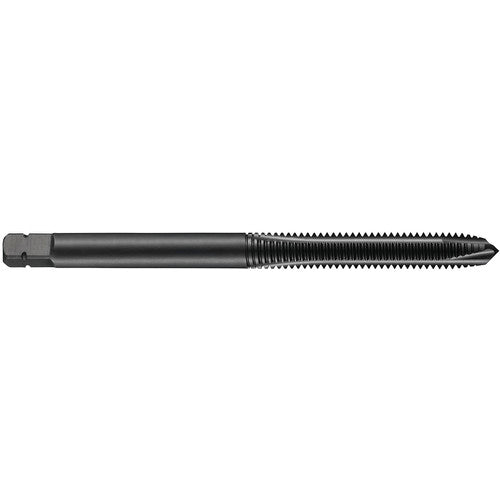

1/2-13 2 Flute 3B HSS-E UNC Machine Tap Spiral Point E-code # E0261/2
Item #: HP400581414
Brand: Dormer
Model #: 5974081
| Product Specifications | |
|---|---|
| Thread Standard | UNC |
| Connection Diameter Machine Side (DCONMS) | 0.367″ |
| Thread Size | 1/2″ - 13 |
| Thread Cutting Part Length (THL) | 0.9055″ |
| Thread Diameter Size (TDZ) | 1/2″ |
| Flute Helix Angle (FHA) | 0 Degrees |
| Threads per Inch (TPI) | 13 |
| Tapping Prehole Diameter (Pre-hole) | 27/64″ |
| Thread Tolerance Class (TCTR) | 3B |
| End Shape | Spiral Point |
| Overall Length (OAL) | 3-3/8″ |
| Style | Plug |
| Chamfer | 3.5P-5P |
| Cutting Direction (HAND) | Right Hand |
| Coating | Steam Tempered |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 |
| Length Group | 2.5xD |
| Cutting Edge Material | HSS-E |
| Square Size | 0.275″ |
| Standard | ANSI |
| Measurement Type | Fractional |
| Tool Type | Machine Tap |
| Series/List # | E026 |
| Applicable Material | Steel | Cast Iron | Hard Materials |
