3-Jaw Power Chuck; 6 inch; Direct Mount A2-5 - Benchmark Tooling

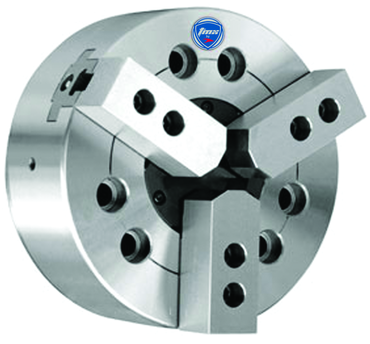

3-Jaw Power Chuck; 6 inch; Direct Mount A2-5


Item #: HK3137810650
Manufacturer: TMX
Mfg #: 3-781-0650

Technical Specifications:
*Brand Name: TMX *Chuck Diameter: 6 *Chuck Height: 3.543 *Description: 3-Jaw Power Chuck Direct Mount *Gripping Range Max.: 6.654 *Gripping Range Min.: .512 *Jaw Stroke (Dia.): .216 *Max. Gripping Force (lbs): 14167 *Max. Speed (rpm): 6000 *Model Number: 37810650 *Mount: A2-5 *Net Weight (lbs): 33.8 *Number of Jaws: 3 *Plunger Stroke: .512 *Spindle Nose: A2-5 *Through Hole Diameter: 1.811

Description:
*3-Jaw Direct Mount Power Chuck *Supplied with spindle mounting plate, Semi-finished draw nut, draw nut wrench, set of soft top jaws, set of t-nuts, wrenches for chuck installation and operation. *Low cost direct replacement for major OE brands *High performance and great value *Use existing top jaws 1.5mmx 60° serrations *Hardened and ground critical surfaces for long life and high accuracy *Large thru hole *1 Year Warranty

Shipping Info:
*Actual Weight - 33.8000
$1,774.28
