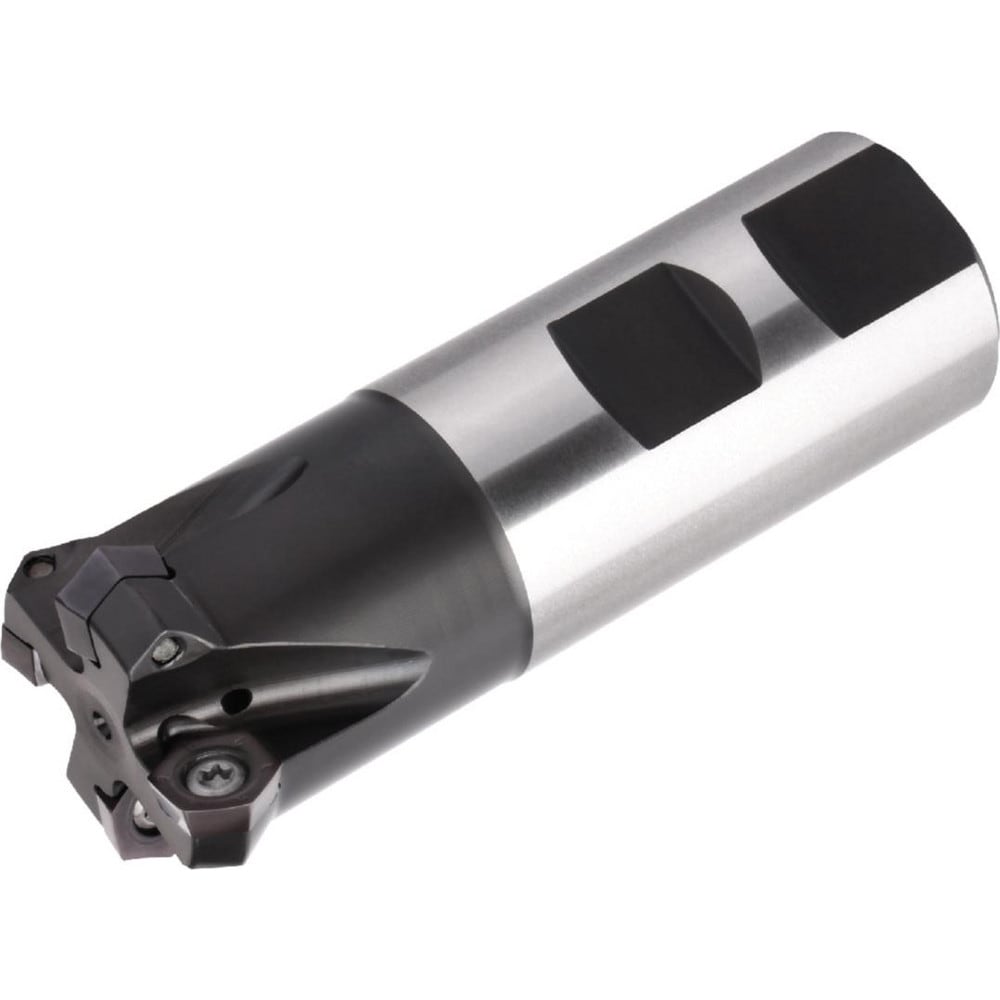

Brand: Widia / Part #: 2263165
Item #: 97022685
Brand: Widia
Model #: 2263165
Product Specifications
| Minimum Cutting Diameter (mm) | 32.00 |
| Maximum Cutting Diameter (mm) | 38.40 |
| Lead Angle | 58 |
| Maximum Depth of Cut (mm) | 4.80 |
| Compatible Insert Size Code | HPGT06T3 |
| Shank Type | Weldon Flat |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Number Of Cutter Inserts | 4 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Overall Length (mm) | 100.00 |
| Overall Height (Mm - 5 Decimals) | 100.00 |
| Series | M640 |
| Toolholder Style | 12395 |
| Functional Length (mm) | 40.00 |
| Maximum RPM | 29500 |
| Tool Application | Facing |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Coolant Through | Yes |
