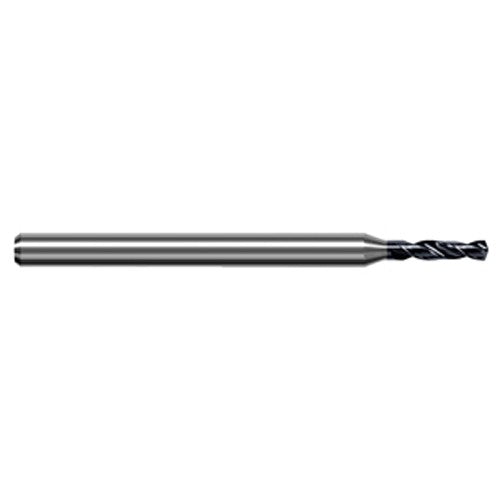

0.61 mm Dia. × 3 mm Shank × 2.9 mm Flute Length × 50 mm OAL, 3xD, 140°, AlTiN, 2xD Flute, Round Solid Carbide Drill
Item #: GE90DHE0240C3
Brand: Harvey Tool
Model #: DHE0240-C3
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 0.61 mm |
| Shank Type | Round |
| Decimal Equivalent | 0.024″ |
| Shape | High Performance |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 0.61 mm |
| Cutting Edge Material | Carbide |
| Length Group | 3xD |
| Tool Type | High Performance |
| Coating | TiAlN |
| Measurement Type | Metric |
| Applicable Material | Steel |
| Length Chip Flute (LCF) | 2.9 mm |
| Connection Diameter Machine Side (DCONMS) | 3 mm |
| Overall Length (OAL) | 50 mm |
| Point Angle (SIG) | 140 Degrees |
