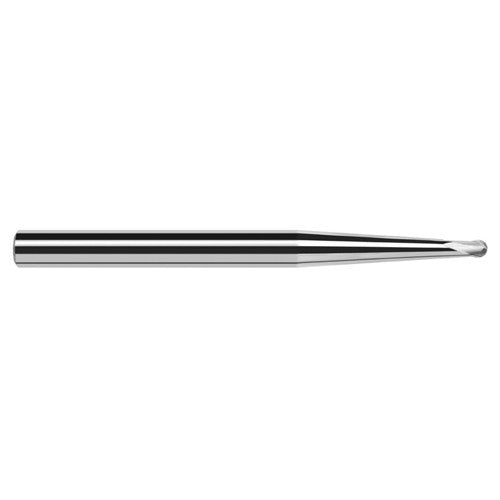

3/32″ Dia. × 3/16″ Shank × 0.074″ DOC × 2″ OAL, Carbide Uncoated, 2 Flute, Ballnose End Mill
Item #: GE90996656
Brand: Harvey Tool
Model #: 996656
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/32″ |
| Flute Count (NOF) | 2 |
| Connection Diameter Machine Side (DCONMS) | 3/16″ |
| Usable Length (LU) | 0.976″ |
| Depth of Cut Maximum (APMX) | 0.074″ |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Overall Length (OAL) | 2″ |
| End Shape | Ball Nose |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.09375″ |
| Coating | Uncoated |
| Measurement Type | Inch |
