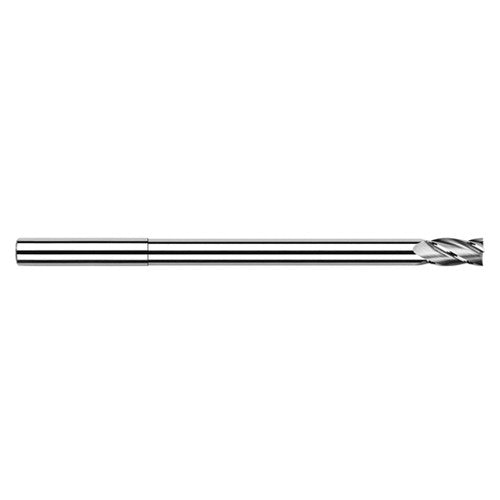

Miniature End Mills - Long Reach, Stub Flute - 0.3125″ (5/16″) Cutter Diameter × 0.4690″ Length of Cut × 4.3430″ (4-11/32″) Reach Carbide Square End Mill, 4 Flutes
Item #: GE90991920
Brand: Harvey Tool
Model #: 991920
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/16″ |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 5/16″ |
| Usable Length (LU) | 4-11/32″ |
| Depth of Cut Maximum (APMX) | 0.469″ |
| Length Group | Long Reach |
| Overall Length (OAL) | 6″ |
| Flute Type | Stub |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.3125″ |
| Coating | Uncoated |
| Measurement Type | Inch |
| Flute Count (NOF) | 4 |
