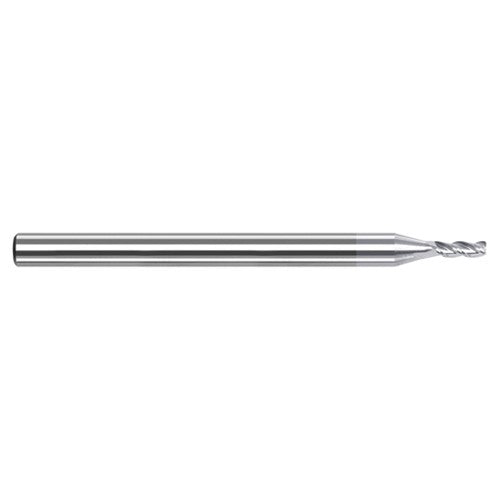

Variable Helix End Mills for Aluminum Alloys - 1.800mm Cutter Diameter × 0.100mm Radius × 2.700mm Length of Cut Carbide Corner Radius End Mill for Aluminum Alloys, 3 Flutes, TiB2 Coated
Item #: GE90986240C8
Brand: Harvey Tool
Model #: 986240-C8
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1.8 mm |
| End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 4 mm |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Depth of Cut Maximum (APMX) | 2.7 mm |
| Corner Radius (RE) | 0.1 mm |
| Overall Length (OAL) | 50 mm |
| Length Group | 1.5D |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.0709″ |
| Coating | TiB2 |
| Measurement Type | Metric |
| Flute Count (NOF) | 3 |
