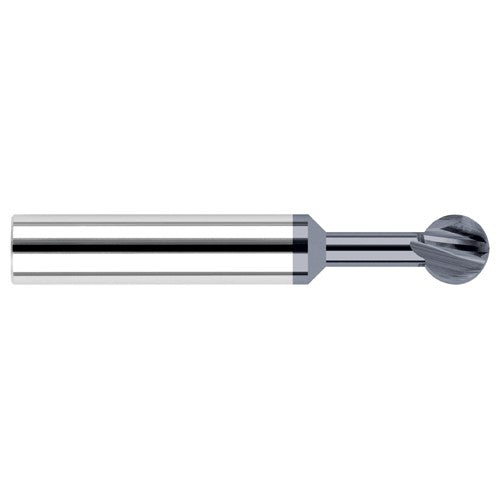

Undercutting End Mills - 0.3934″ Cutter Diameter × 0.5620″ (9/16″) Neck Length × 300° Carbide Undercutting End Mill, 4 Flutes, AlTiN Coated
Item #: GE90984025C3
Brand: Harvey Tool
Model #: 984025-C3
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.3934″ |
| Usable Length (LU) | 0.928″ |
| Connection Diameter Machine Side (DCONMS) | 7/16″ |
| Corner Radius (RE) | 0.1967″ |
| Depth of Cut Maximum (APMX) | 0.366″ |
| Neck Length (LN) | 9/16″ |
| Overall Length (OAL) | 2-3/4″ |
| End Shape | Spherical |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.3934″ |
| Coating | AlTiN |
| Measurement Type | Inch |
| Flute Count (NOF) | 4 |
