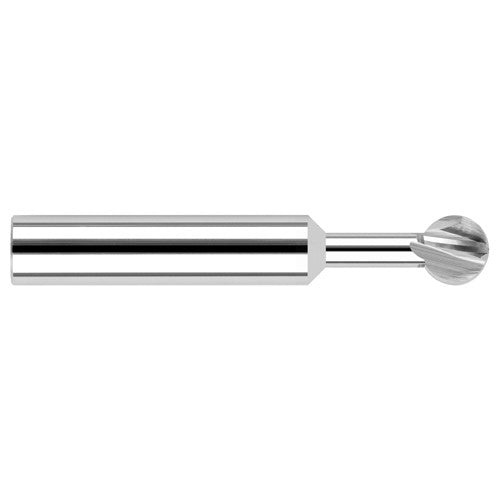

Undercutting End Mills - 0.3125″ (5/16″) Cutter Diameter × 0.4370″ (7/16″) Neck Length × 300° Carbide Undercutting End Mill, 4 Flutes
Item #: GE90984020
Brand: Harvey Tool
Model #: 984020
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/16″ |
| Usable Length (LU) | 0.728″ |
| Connection Diameter Machine Side (DCONMS) | 5/16″ |
| Corner Radius (RE) | 0.1563″ |
| Depth of Cut Maximum (APMX) | 0.291″ |
| Neck Length (LN) | 7/16″ |
| Overall Length (OAL) | 2-1/2″ |
| End Shape | Spherical |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.3125″ |
| Coating | Uncoated |
| Measurement Type | Inch |
| Flute Count (NOF) | 4 |
