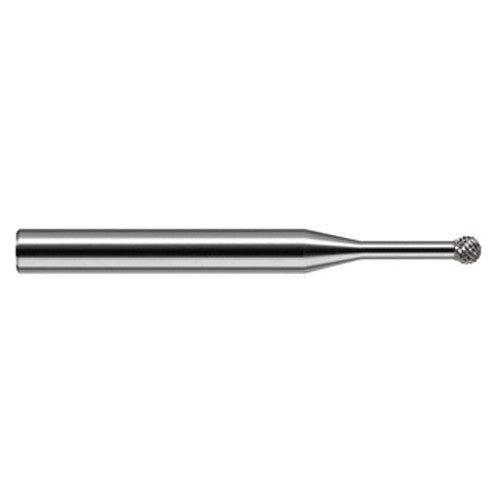

Undercutting End Mills - 0.0780″ (5/64″) Cutter Diameter × 0.1250″ (1/8″) Neck Length × 270° Carbide Deburring Undercut End Mill, 15 RH Teeth, 12 LH Teeth
Item #: GE90980578
Brand: Harvey Tool
Model #: 980578
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/64″ |
| Usable Length (LU) | 0.192″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Corner Radius (RE) | 0.039″ |
| Depth of Cut Maximum (APMX) | 0.067″ |
| Neck Length (LN) | 1/8″ |
| Overall Length (OAL) | 1-1/2″ |
| End Shape | Spherical |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.078125″ |
| Coating | Uncoated |
| Measurement Type | Inch |
