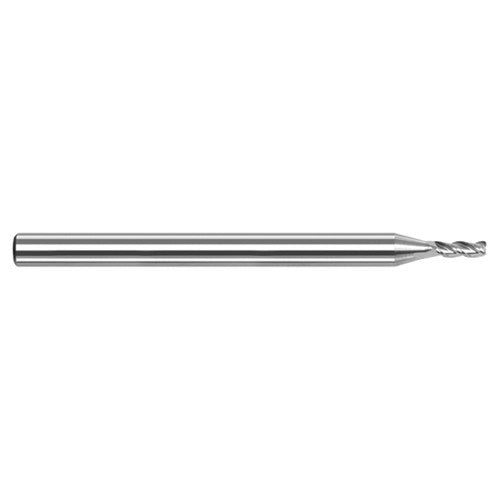

Variable Helix End Mills for Aluminum Alloys - 0.400mm Cutter Diameter × 0.050mm Radius × 1.200mm Length of Cut Carbide Corner Radius End Mill for Aluminum Alloys, 3 Flutes
Item #: GE90973509
Brand: Harvey Tool
Model #: 973509
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.4 mm |
| End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 4 mm |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Depth of Cut Maximum (APMX) | 1.2 mm |
| Corner Radius (RE) | 0.05 mm |
| Overall Length (OAL) | 50 mm |
| Length Group | 3D |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.0157″ |
| Coating | Uncoated |
| Measurement Type | Metric |
| Flute Count (NOF) | 3 |
