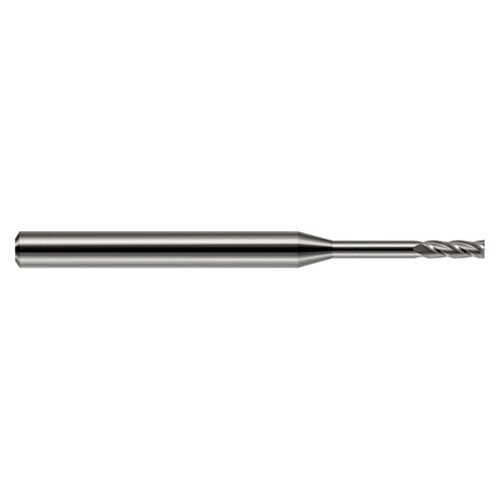

Miniature End Mills - Long Reach, Standard Flute - 0.1180″ Cutter Diameter × 0.3540″ Length of Cut × 0.9500″ Reach Carbide Square End Mill, 4 Flutes
Item #: GE90972305
Brand: Harvey Tool
Model #: 972305
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.118″ |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Usable Length (LU) | 0.95″ |
| Depth of Cut Maximum (APMX) | 0.354″ |
| Neck Length (LN) | 0.596″ |
| Overall Length (OAL) | 2″ |
| Length Group | 8D |
| Cutting Edge Material | Carbide |
| Flute Type | Standard |
| Coating | Uncoated |
| Decimal Equivalent | 0.118″ |
| Flute Count (NOF) | 4 |
| Measurement Type | Inch |
