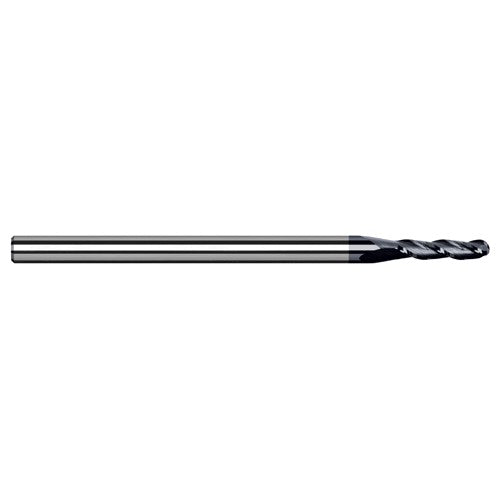

5/64″ Dia. × 1/8″ Shank × 15/64″ DOC × 1-1/2″ OAL, Carbide AlTiN, 3 Flute, Ballnose End Mill
Item #: GE90971878C3
Brand: Harvey Tool
Model #: 971878-C3
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/64″ |
| Flute Count (NOF) | 3 |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Applicable Material | Steel |
| Depth of Cut Maximum (APMX) | 15/64″ |
| Length Group | 3D |
| Overall Length (OAL) | 1-1/2″ |
| End Shape | Ball Nose |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.078125″ |
| Coating | AlTiN |
| Measurement Type | Inch |
