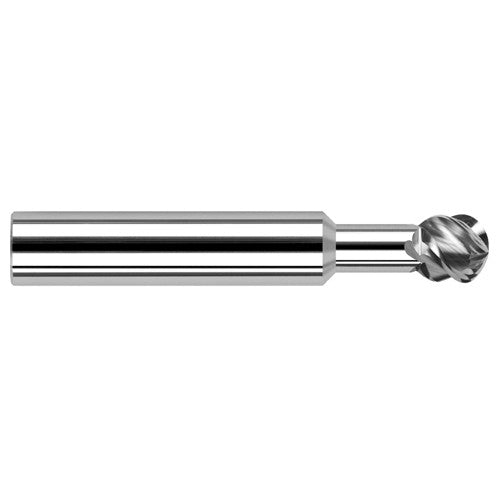

Undercutting End Mills - 0.0625″ (1/16″) Cutter Diameter × 0.2500″ (1/4″) Neck Length × 270° Carbide Undercutting End Mill, 2 Flutes
Item #: GE90970462
Brand: Harvey Tool
Model #: 970462
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/16″ |
| Usable Length (LU) | 0.303″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Corner Radius (RE) | 1/32″ |
| Depth of Cut Maximum (APMX) | 0.053″ |
| Neck Length (LN) | 1/4″ |
| Overall Length (OAL) | 1-1/2″ |
| End Shape | Spherical |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.0625″ |
| Coating | Uncoated |
| Measurement Type | Inch |
| Flute Count (NOF) | 2 |
