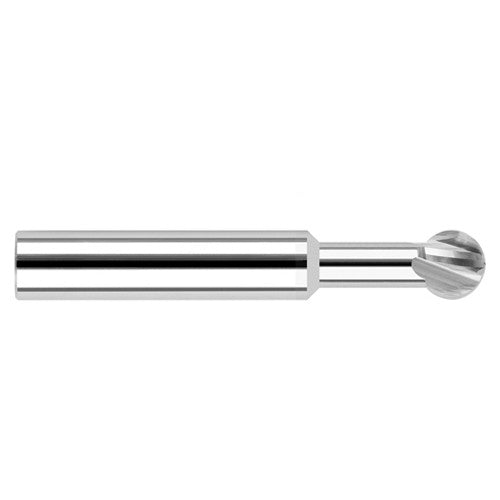

Undercutting End Mills - 0.3750″ (3/8″) Cutter Diameter × 2.0000″ (2″) Neck Length × 270° Carbide Undercutting End Mill, 4 Flutes
Item #: GE90960624
Brand: Harvey Tool
Model #: 960624
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/8″ |
| Usable Length (LU) | 2.32″ |
| Connection Diameter Machine Side (DCONMS) | 3/8″ |
| Corner Radius (RE) | 3/16″ |
| Depth of Cut Maximum (APMX) | 0.32″ |
| Neck Length (LN) | 2″ |
| Overall Length (OAL) | 4″ |
| Length Group | 5D |
| Cutting Edge Material | Carbide |
| End Shape | Spherical |
| Coating | Uncoated |
| Decimal Equivalent | 0.375″ |
| Flute Count (NOF) | 4 |
| Measurement Type | Inch |
