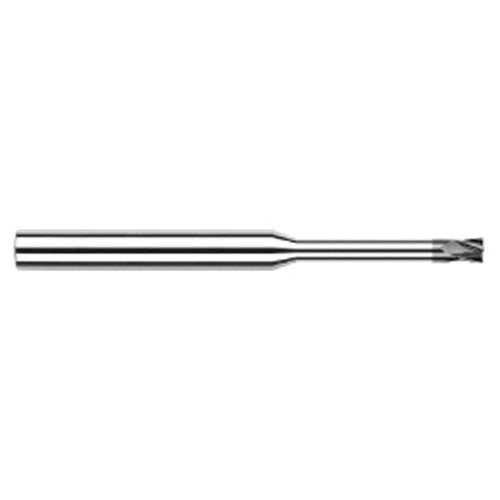

Diamond End Mills for Non-Ferrous Materials - CVD Diamond - 0.1875″ (3/16″) Cutter Diameter × 0.2850″ Length of Cut × 1.5000″ (1-1/2″) Reach Carbide Square End Mill, 4 Flutes, CVD Diamond Coated
Item #: GE90960312
Brand: Harvey Tool
Model #: 960312
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/16″ |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 3/16″ |
| Usable Length (LU) | 1-1/2″ |
| Depth of Cut Maximum (APMX) | 0.285″ |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Overall Length (OAL) | 3″ |
| Length Group | 8D |
| Cutting Edge Material | CVD |
| Flute Type | Stub |
| Coating | Diamond |
| Decimal Equivalent | 0.1875″ |
| Flute Count (NOF) | 4 |
| Measurement Type | Inch |
