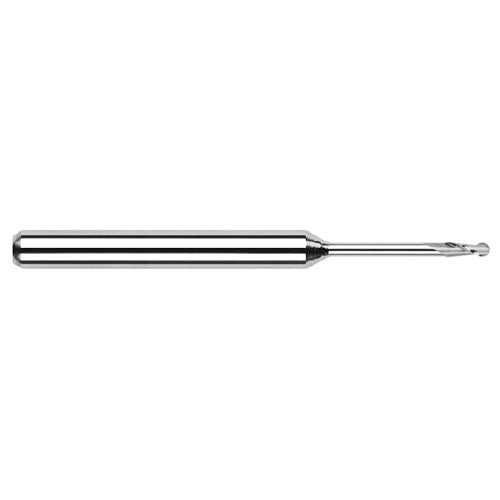

1/32″ Dia. × 1/8″ Shank × 3/32″ DOC × 1-1/2″ OAL, Carbide Uncoated, Standard , 2 Flute, Ballnose End Mill
Item #: GE90948631
Brand: Harvey Tool
Model #: 948631
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/32″ |
| Usable Length (LU) | 5/32″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Length Group | 5D |
| Depth of Cut Maximum (APMX) | 3/32″ |
| End Shape | Ball Nose |
| Overall Length (OAL) | 1-1/2″ |
| Flute Type | Standard |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.03125″ |
| Coating | Uncoated |
| Measurement Type | Inch |
| Flute Count (NOF) | 2 |
