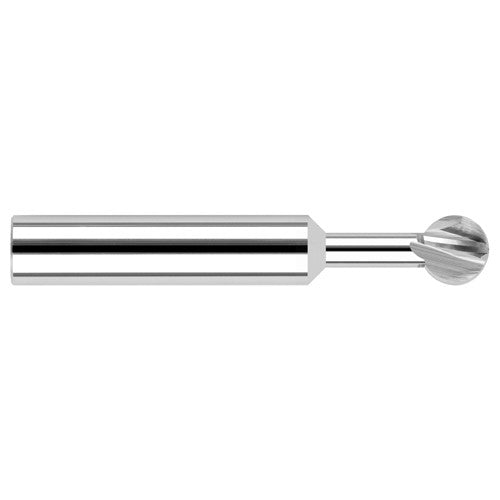

Undercutting End Mills - 0.5000″ (1/2″) Cutter Diameter × 1.6250″ (1-5/8″) Neck Length × 300° Carbide Undercutting End Mill, 4 Flutes
Item #: GE90940132
Brand: Harvey Tool
Model #: 940132
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/2″ |
| Usable Length (LU) | 2.092″ |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Corner Radius (RE) | 1/4″ |
| Depth of Cut Maximum (APMX) | 0.466″ |
| Neck Length (LN) | 1-5/8″ |
| Overall Length (OAL) | 4″ |
| End Shape | Spherical |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.5″ |
| Coating | Uncoated |
| Measurement Type | Inch |
| Flute Count (NOF) | 4 |
