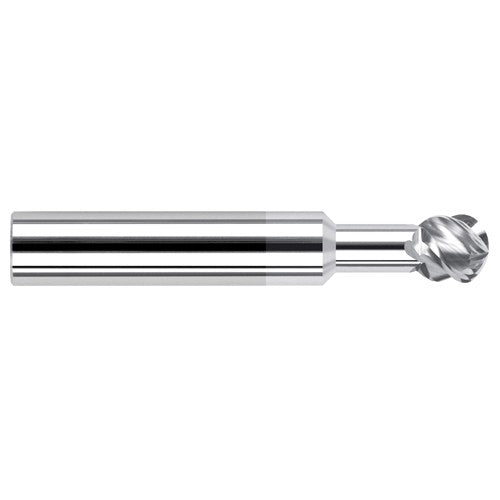

Undercutting End Mills - 0.2500″ (1/4″) Cutter Diameter × 2.2500″ (2-1/4″) Neck Length × 270° Carbide Undercutting End Mill, 4 Flutes, TiB2 Coated
Item #: GE90928816C8
Brand: Harvey Tool
Model #: 928816-C8
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/4″ |
| Usable Length (LU) | 2.463″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ |
| Corner Radius (RE) | 1/8″ |
| Depth of Cut Maximum (APMX) | 0.213″ |
| Neck Length (LN) | 2-1/4″ |
| Overall Length (OAL) | 4″ |
| End Shape | Spherical |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.25″ |
| Coating | TiB2 |
| Measurement Type | Inch |
| Flute Count (NOF) | 4 |
