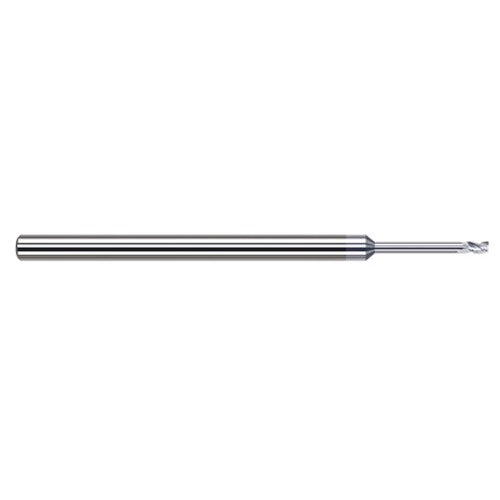

Variable Helix End Mills for Aluminum Alloys - 0.0620″ (1/16″) Cutter Diameter × 0.0930″ (3/32″) Length of Cut × 0.5000″ (1/2″) Reach Carbide Square End Mill for Aluminum Alloys, 3 Flutes, TiB2 Coated
Item #: GE90927162C8
Brand: Harvey Tool
Model #: 927162-C8
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/16″ |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Usable Length (LU) | 1/2″ |
| Depth of Cut Maximum (APMX) | 3/32″ |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Overall Length (OAL) | 2-1/2″ |
| Length Group | 8D |
| Cutting Edge Material | Carbide |
| Flute Type | Stub |
| Coating | TiB2 |
| Decimal Equivalent | 0.0625″ |
| Flute Count (NOF) | 3 |
| Measurement Type | Inch |
