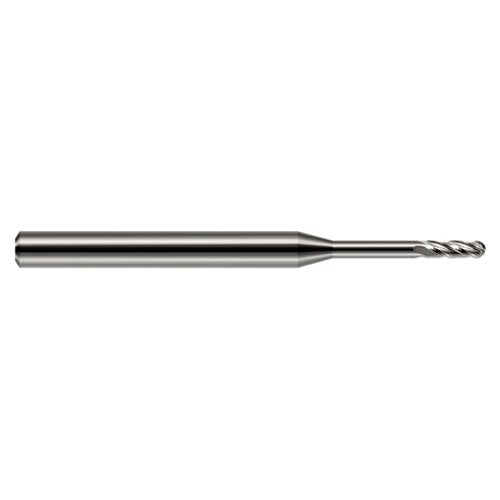

0.025″ Dia. × 1/8″ Shank × 0.075″ DOC × 1-1/2″ OAL, Carbide Uncoated, Standard , 4 Flute, Ballnose End Mill
Item #: GE9076825
Brand: Harvey Tool
Model #: 76825
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.025″ |
| Usable Length (LU) | 0.213″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Length Group | Long Reach |
| Depth of Cut Maximum (APMX) | 0.075″ |
| End Shape | Ball Nose |
| Overall Length (OAL) | 1-1/2″ |
| Flute Type | Standard |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.025″ |
| Coating | Uncoated |
| Measurement Type | Inch |
| Flute Count (NOF) | 4 |
