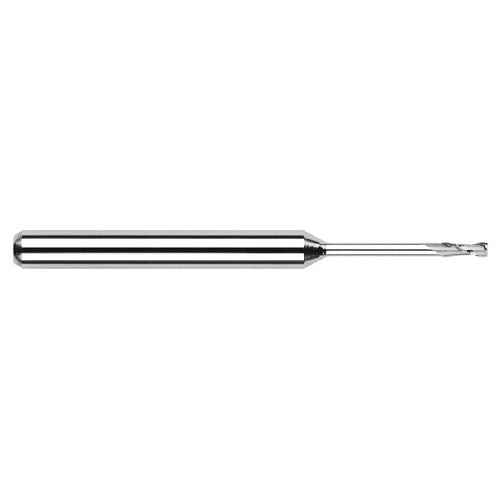

Miniature End Mills - Long Reach, Standard Flute - 0.1000″ Cutter Diameter × 0.3000″ Length of Cut × 0.6250″ (5/8″) Reach Carbide Square End Mill, 2 Flutes
Item #: GE9076300
Brand: Harvey Tool
Model #: 76300
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.1″ |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Usable Length (LU) | 5/8″ |
| Depth of Cut Maximum (APMX) | 0.3″ |
| Neck Length (LN) | 0.325″ |
| Overall Length (OAL) | 1-1/2″ |
| Length Group | Long Reach |
| Cutting Edge Material | Carbide |
| Flute Type | Standard |
| Coating | Uncoated |
| Decimal Equivalent | 0.1″ |
| Flute Count (NOF) | 2 |
| Measurement Type | Inch |
