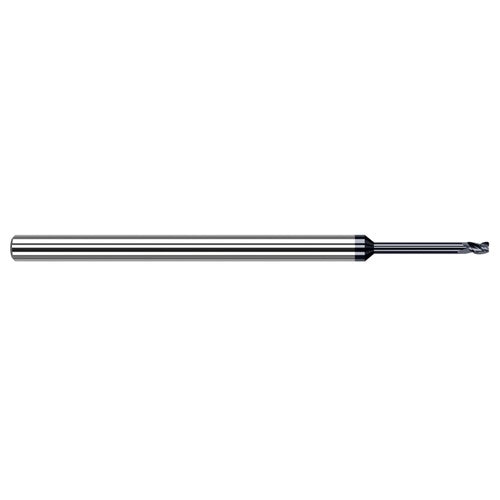

Variable Helix End Mills for Medium Alloy Steels - 0.0500″ Cutter Diameter × 0.0050″ Radius × 0.0750″ Length of Cut × 0.2500″ (1/4″) Reach Carbide Corner Radius End Mill for Medium Alloy Steels, 3 Flutes, AlTiN Coated
Item #: GE9062450C3
Brand: Harvey Tool
Model #: 62450-C3
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.05″ |
| Usable Length (LU) | 1/4″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Applicable Material | Super-Alloys / Titanium |
| Depth of Cut Maximum (APMX) | 0.075″ |
| Corner Radius (RE) | 0.005″ |
| Overall Length (OAL) | 2-1/2″ |
| Length Group | 5D |
| Cutting Edge Material | Carbide |
| Flute Type | Stub |
| Coating | AlTiN |
| Decimal Equivalent | 0.05″ |
| Flute Count (NOF) | 3 |
| Measurement Type | Inch |
| End Shape | Corner Radius |
