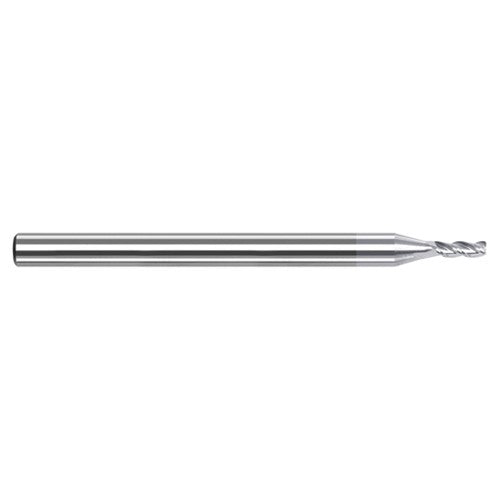

.156 D V-HELIX NF 1.5X
Item #: GE9061810C8
Brand: Harvey Tool
Model #: 61810-C8
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/32″ |
| End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 3/16″ |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Depth of Cut Maximum (APMX) | 0.235″ |
| Corner Radius (RE) | 0.005″ |
| Overall Length (OAL) | 2″ |
| Length Group | 1.5D |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.15625″ |
| Coating | TiB2 |
| Measurement Type | Inch |
| Flute Count (NOF) | 3 |
