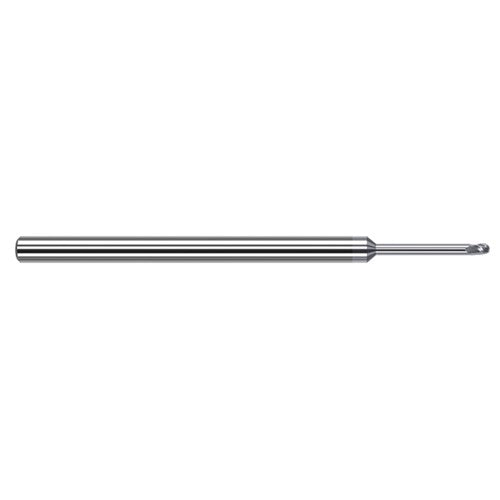

3/32″ Dia. × 1/8″ Shank × 0.139″ DOC × 2-1/2″ OAL, Carbide TiB2, Stub , 3 Flute, Ballnose End Mill
Item #: GE9054493C8
Brand: Harvey Tool
Model #: 54493-C8
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/32″ |
| Usable Length (LU) | 3/4″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Depth of Cut Maximum (APMX) | 0.139″ |
| Length Group | 8D |
| Overall Length (OAL) | 2-1/2″ |
| End Shape | Ball Nose |
| Cutting Edge Material | Carbide |
| Flute Type | Stub |
| Coating | TiB2 |
| Decimal Equivalent | 0.09375″ |
| Flute Count (NOF) | 3 |
| Measurement Type | Inch |
