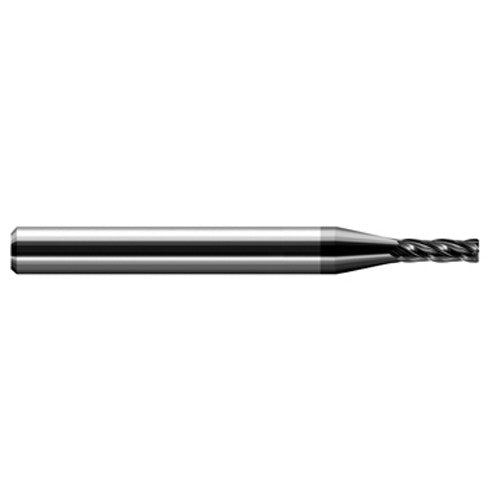

Miniature End Mills - Stub & Standard - 0.0780″ (5/64″) Cutter Diameter × 0.0200″ Radius × 0.2340″ (15/64″) Length of Cut Carbide Corner Radius End Mill, 4 Flutes, Amorphous Diamond Coated
Item #: GE9051678C4
Brand: Harvey Tool
Model #: 51678-C4
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/64″ |
| Flute Count (NOF) | 4 |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 15/64″ |
| Corner Radius (RE) | 0.02″ |
| Overall Length (OAL) | 1-1/2″ |
| Flute Type | Stub|Standard |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.078125″ |
| Coating | Amorphous Diamond |
| Measurement Type | Inch |
