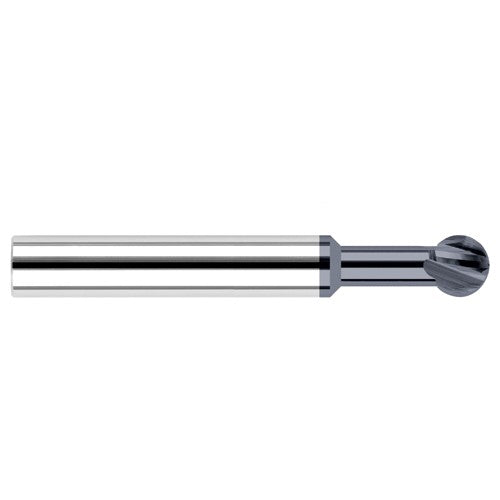

Undercutting End Mills - 0.0781″ (5/64″) Cutter Diameter × 0.1870″ (3/16″) Neck Length × 270° Carbide Undercutting End Mill, 2 Flutes, AlTiN Coated
Item #: GE9039705C3
Brand: Harvey Tool
Model #: 39705-C3
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/64″ |
| Usable Length (LU) | 0.254″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Corner Radius (RE) | 0.0391″ |
| Depth of Cut Maximum (APMX) | 0.067″ |
| Neck Length (LN) | 3/16″ |
| Overall Length (OAL) | 1-1/2″ |
| End Shape | Spherical |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.078125″ |
| Coating | AlTiN |
| Measurement Type | Inch |
| Flute Count (NOF) | 2 |
