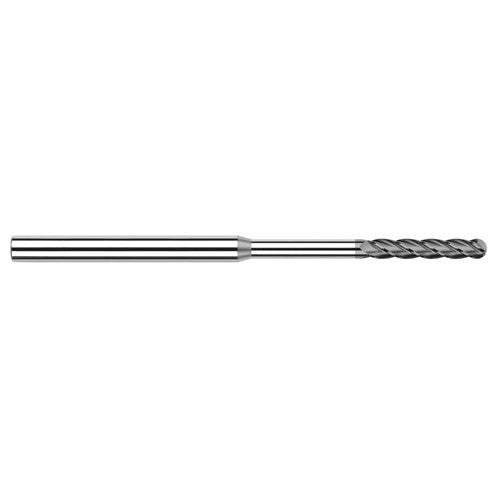

3/16″ Dia. × 3/16″ Shank × 1″ DOC × 3″ OAL, CVD Diamond, 4 Flute, Ballnose End Mill
Item #: GE9036612
Brand: Harvey Tool
Model #: 36612
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/16″ |
| Usable Length (LU) | 1-7/8″ |
| Connection Diameter Machine Side (DCONMS) | 3/16″ |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Depth of Cut Maximum (APMX) | 1″ |
| Length Group | Long Reach |
| Overall Length (OAL) | 3″ |
| End Shape | Ball Nose |
| Cutting Edge Material | CVD |
| Decimal Equivalent | 0.1875″ |
| Coating | Diamond |
| Measurement Type | Inch |
| Flute Count (NOF) | 4 |
