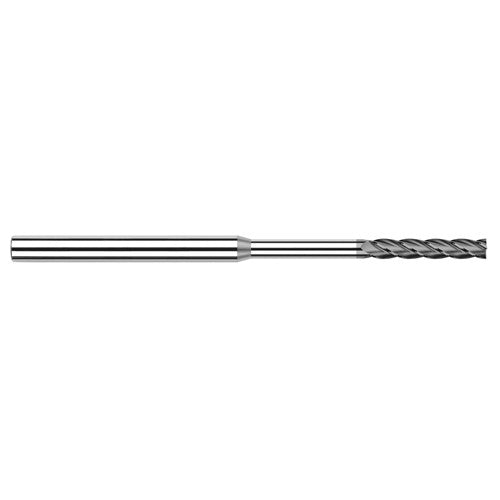

Diamond End Mills for Non-Ferrous Materials - CVD Diamond - 0.1875″ (3/16″) Cutter Diameter × 1.0000″ (1″) Length of Cut × 1.8750″ (1-7/8″) Reach Carbide Square End Mill, 4 Flutes, CVD Diamond Coated
Item #: GE9036412
Brand: Harvey Tool
Model #: 36412
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/16″ |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 3/16″ |
| Usable Length (LU) | 1-7/8″ |
| Depth of Cut Maximum (APMX) | 1″ |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Overall Length (OAL) | 3″ |
| Length Group | Long Reach |
| Cutting Edge Material | CVD |
| Flute Type | Long |
| Coating | Diamond |
| Decimal Equivalent | 0.1875″ |
| Flute Count (NOF) | 4 |
| Measurement Type | Inch |
