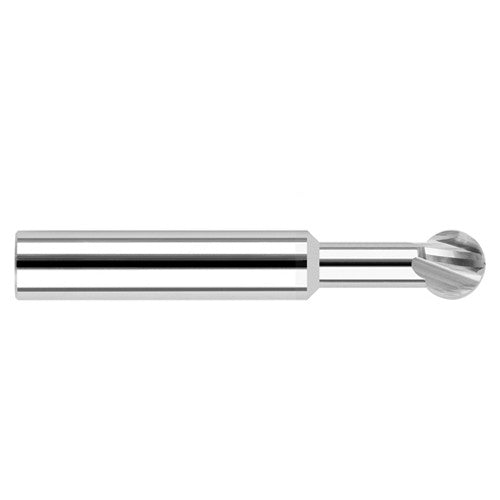

Undercutting End Mills - 0.4724″ Cutter Diameter × 1.0000″ (1″) Neck Length × 270° Carbide Undercutting End Mill, 4 Flutes
Item #: GE9023231
Brand: Harvey Tool
Model #: 23231
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.4724″ |
| Usable Length (LU) | 1.403″ |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Corner Radius (RE) | 0.2362″ |
| Depth of Cut Maximum (APMX) | 0.403″ |
| Neck Length (LN) | 1″ |
| Overall Length (OAL) | 3″ |
| End Shape | Spherical |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.4724″ |
| Coating | Uncoated |
| Measurement Type | Inch |
| Flute Count (NOF) | 4 |
