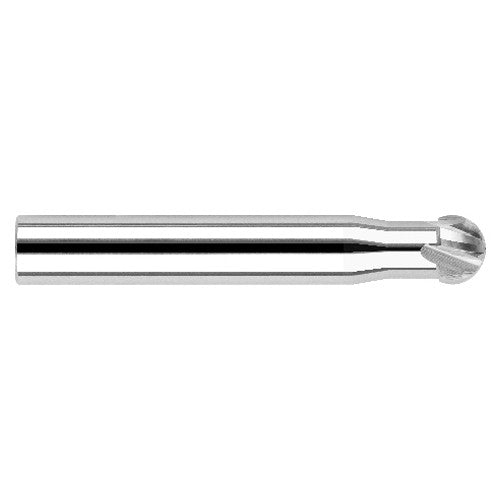

Undercutting End Mills - 0.1562″ (5/32″) Cutter Diameter × 0.5000″ (1/2″) Neck Length × 220° Carbide Undercutting End Mill, 4 Flutes
Item #: GE9022810
Brand: Harvey Tool
Model #: 22810
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/32″ |
| Usable Length (LU) | 0.605″ |
| Connection Diameter Machine Side (DCONMS) | 3/16″ |
| Corner Radius (RE) | 5/64″ |
| Depth of Cut Maximum (APMX) | 0.105″ |
| Neck Length (LN) | 1/2″ |
| Overall Length (OAL) | 2″ |
| End Shape | Spherical |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.15625″ |
| Coating | Uncoated |
| Measurement Type | Inch |
| Flute Count (NOF) | 4 |
