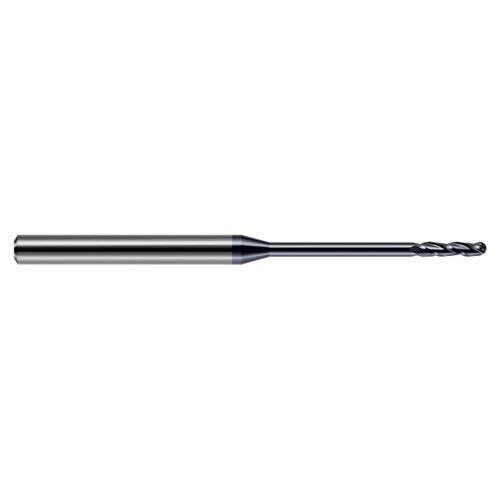

3/16″ Dia. × 3/16″ Shank × 1-1/8″ DOC × 3″ OAL, Carbide AlTiN, Long , 3 Flute, Ballnose End Mill
Item #: GE9014812C3
Brand: Harvey Tool
Model #: 14812-C3
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/16″ |
| Usable Length (LU) | 1-5/8″ |
| Connection Diameter Machine Side (DCONMS) | 3/16″ |
| Length Group | Long Reach |
| Depth of Cut Maximum (APMX) | 1-1/8″ |
| End Shape | Ball Nose |
| Overall Length (OAL) | 3″ |
| Flute Type | Long |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.1875″ |
| Coating | AlTiN |
| Measurement Type | Inch |
| Flute Count (NOF) | 3 |
