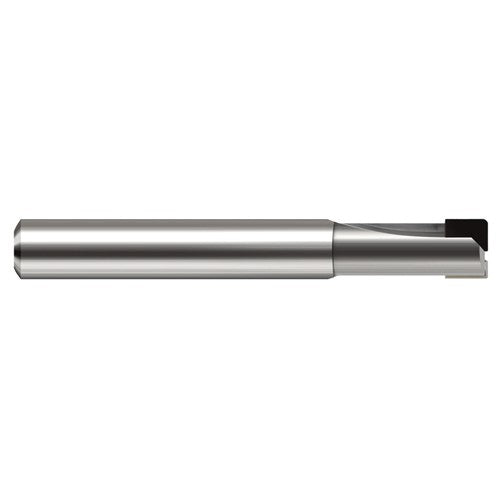

Diamond End Mills for Non-Ferrous Materials - PCD Diamond - 0.1250″ (1/8″) Cutter Diameter × 0.0150″ (1/64″) Radius × 0.2500″ (1/4″) Length of Cut PCD Corner Radius End Mill, Flute
Item #: GE9012208
Brand: Harvey Tool
Model #: 12208
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/8″ |
| End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Usable Length (LU) | 1/2″ |
| Depth of Cut Maximum (APMX) | 1/4″ |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Overall Length (OAL) | 1-1/2″ |
| Corner Radius (RE) | 1/64″ |
| Cutting Edge Material | PCD |
| Tool Type | Single-End|Center Cut |
| Coating | Diamond |
| Decimal Equivalent | 0.125″ |
| Flute Count (NOF) | 1 |
