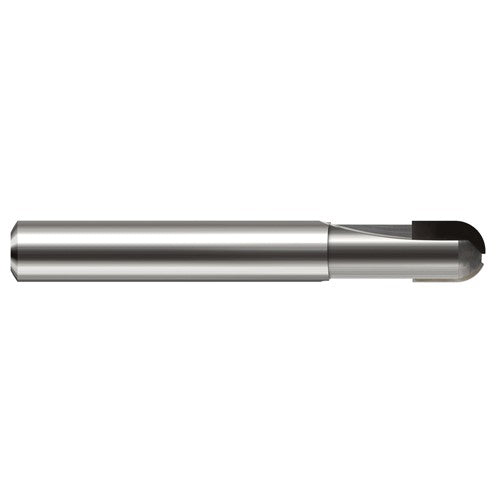

1/8″ Dia. × 1/8″ Shank × 1/4″ DOC × 1-1/2″ OAL, PCD Diamond, 1 Flute, Ballnose End Mill
Item #: GE9012008
Brand: Harvey Tool
Model #: 12008
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/8″ |
| Flute Count (NOF) | 1 |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Usable Length (LU) | 1/2″ |
| Depth of Cut Maximum (APMX) | 1/4″ |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Overall Length (OAL) | 1-1/2″ |
| Tool Type | Single-End|Center Cut |
| Cutting Edge Material | PCD |
| End Shape | Ball Nose |
| Coating | Diamond |
| Decimal Equivalent | 0.125″ |
