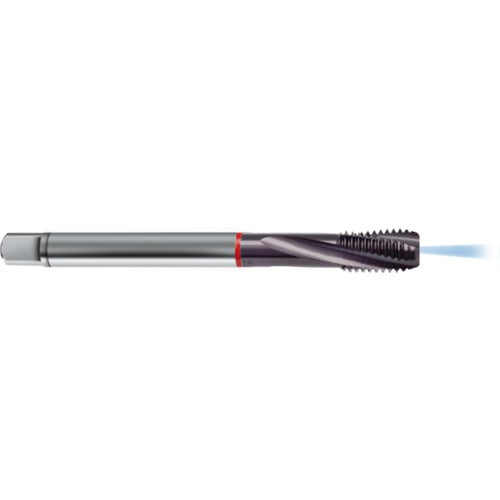

7/16-20 UNF SLW HELIX HSS
Item #: GD203760111130
Brand: Guhring
Model #: 9043760111130
| Product Specifications | |
|---|---|
| Tool Type | Cut Tap |
| Application | Blind Hole |
| Thread Diameter Size (TDZ) | 7/16″ |
| Coating | TiCN |
| Overall Length (OAL) | 3.937″ |
| Coolant Supply Property (CSP) | axial |
| Connection Diameter Machine Side (DCONMS) | 8.2042″ |
| Threads per Inch (TPI) | 20 |
| Flute Count (NOF) | 4 |
| Helix Angle | 15 Degrees |
| Drive Size (DRVS) | 0.242″ |
| Chamfer | 1.5-2 Form E |
| Thread Tolerance Class (TCTR) | H5|H6 |
| Series/List # | 4376 |
| Tap Standard | DIN | ANSI |
| Thread Size | 7/16″ - 20 |
| Thread Standard | UNF |
| Body Material | HSS-E-PM |
