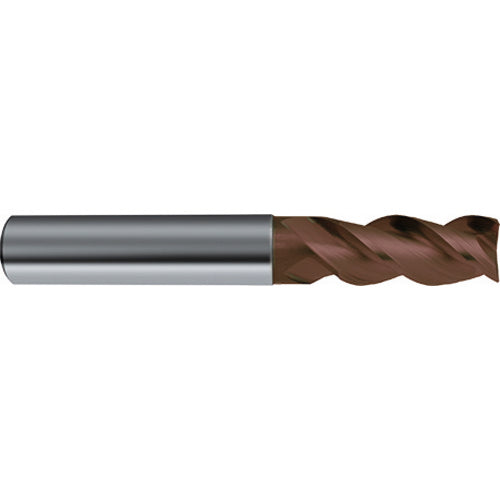

9067970095000 RF100 EM
Item #: GD1667970095000
Brand: Guhring
Model #: 9067970095000
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 9.5 mm |
| Flute Helix Angle (FHA) | 41 Degrees | 43 Degrees | 45 Degrees |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Shank Type | HA cylindrical |
| Depth of Cut Maximum (APMX) | 22 mm |
| Corner Chamfer Width (CHW) | 0.14 mm |
| Overall Length (OAL) | 72 mm |
| Neck Diameter (DN) | 9.2 mm |
| Cutting Edge Material | Carbide |
| Neck Length (LN) | 30.3 mm |
| Coating | nano-Si |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 |
