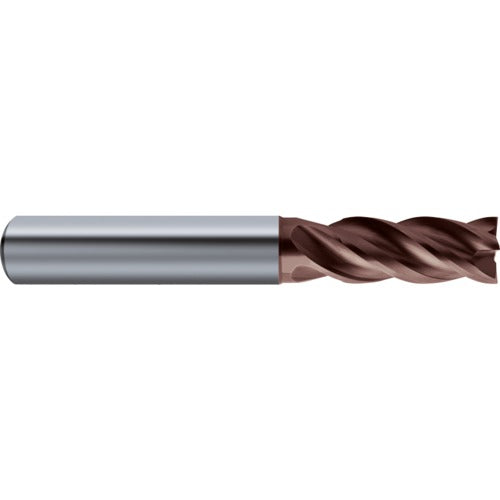

10MM DIVER END MILL
Item #: GD1667370100000
Brand: Guhring
Model #: 9067370100000
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 10 mm |
| Flute Helix Angle (FHA) | 36 Degrees | 37 Degrees | 38 Degrees |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Shank Type | HA cylindrical |
| Depth of Cut Maximum (APMX) | 22 mm |
| Corner Chamfer Width (CHW) | 0.1 mm |
| Overall Length (OAL) | 72 mm |
| Neck Diameter (DN) | 9.5 mm |
| Cutting Edge Material | Carbide |
| Neck Length (LN) | 30 mm |
| Coating | nano-Si |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 |
