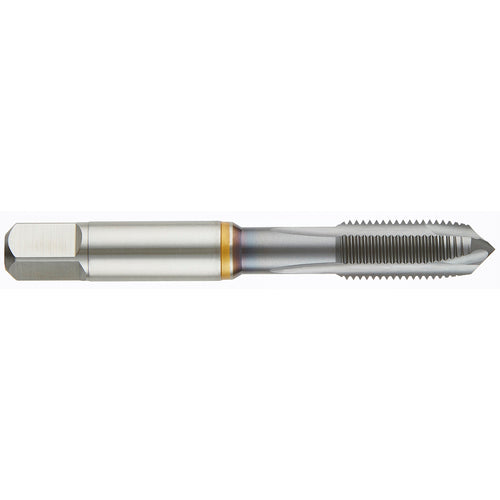

8-36 H2 COB PLUG ANSI POWERTAP-TICN
Item #: GD1544062041660
Brand: Guhring
Model #: 9044062041660
| Product Specifications | |
|---|---|
| Thread Standard | NF |
| Cutting Edge Material | HSS-E |
| Thread Size | #8 - 36 |
| Tool Type | Spiral Point |
| Thread Diameter Size (TDZ) | #8 |
| Connection Diameter Machine Side (DCONMS) | 0.168″ |
| Threads per Inch (TPI) | 36 |
| Thread Cutting Part Length (THL) | 0.472″ |
| Thread Tolerance Class (TCTR) | H2 |
| Flute Length | 0.472″ |
| Overall Length (OAL) | 2.13″ |
| End Shape | Spiral Point |
| Chamfer | Plug |
| Style | Plug |
| Coating | TiCN |
| Measurement Type | Machine Screw |
| Flute Count (NOF) | 3 |
| Series/List # | 4406 |
