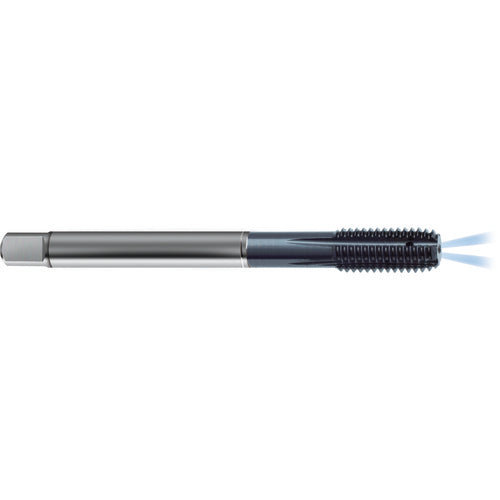

9043790063500 FORM TAP
Item #: GD1443790063500
Brand: Guhring
Model #: 9043790063500
| Product Specifications | |
|---|---|
| Tool Type | Form Tap |
| Thread Standard | UNC |
| Thread Diameter Size (TDZ) | 1/4″ |
| Application | Through Hole |
| Overall Length (OAL) | 3.15″ |
| Coating | TiCN |
| Usable Length (LU) | 1.1811″ |
| Coolant Supply Property (CSP) | radial |
| Connection Diameter Machine Side (DCONMS) | 0.255″ |
| Threads per Inch (TPI) | 20 |
| Flute Count (NOF) | 5 |
| Chamfer | 2-3 Form C |
| Drive Size (DRVS) | 0.1909″ |
| Series/List # | 4379 |
| Thread Tolerance Class (TCTR) | H7|H8 |
| Thread Size | 1/4″ - 20 |
| Tap Standard | DIN | ANSI |
| Body Material | HSS-E-PM |
